Camera — Lucid Vision Triton

ROS2 Humble driver for Lucid Vision Triton cameras (GigE Vision), packaged as a Docker container. Supports single and multi-camera setups, JPEG-compressed streaming over LAN or VPN, bag recording, and video export.

Adapted from the official Lucid Vision ROS2 driver (originally for ROS2 Eloquent).

Requirements

• Lucid Vision Triton camera connected via GigE (Ethernet)
• ArenaSDK and arena_api files placed in resources/ (see Getting Started)
• GigE interface configured with scripts/setup_network.sh

Quick Start

# Configure GigE interface (run on host, not inside container)
sudo ./workspace/camera-lucid/scripts/setup_network.sh <gige-interface>
sudo ip addr add 169.254.1.1/16 dev <gige-interface>

xhost +local:docker
docker compose up -d camera
docker compose exec camera bash

# Inside container — verify camera is detected
python3 /arena_camera_ros2/scripts/list_cameras.py

# Start camera node
ros2 run arena_camera_node start --ros-args \
    -p serial:=<YOUR_SERIAL> \
    -p topic:=/camera/image_raw \
    -p pixelformat:=bayer_rggb8

Directory Structure

workspace/camera-lucid/
├── Dockerfile                      # ROS2 Humble + ArenaSDK image
├── docker-compose.yml              # Standalone camera compose
├── config/
│   ├── setup_fastdds.sh            # Generates FastDDS unicast profiles
│   ├── cameras_example.yaml        # Multi-camera config template
│   └── fastdds_*.xml               # FastDDS profiles
├── scripts/
│   ├── setup_network.sh            # GigE interface tuning (MTU, buffers, ring)
│   ├── list_cameras.py             # Detect connected cameras
│   ├── start_camera.sh             # Camera node launcher
│   ├── compress_bayer_stream.py    # JPEG compression relay
│   ├── focus_helper.py             # Live focus score for lens adjustment
│   ├── record_video.py             # Direct MP4 recording
│   ├── bag_to_video.py             # Convert ROS2 bag to MP4
│   └── convert_bag.py              # One-command bag-to-video wrapper
├── notebook_setup/                 # Receiver-side tools
├── launch/
│   ├── multi_camera.launch.py      # Launch multiple cameras from YAML
│   └── camera_streaming.launch.py  # Streaming-optimized launch
└── ros2_ws/src/
    └── arena_camera_node/          # C++ ROS2 node wrapping ArenaSDK

Bayer RAW format

Triton cameras output BayerRG8 natively. Use pixelformat:=bayer_rggb8 for zero-copy RAW data. When processing in OpenCV:

# ROS2 bayer_rggb8 maps to OpenCV BayerBG (naming is inverted)
bgr = cv2.cvtColor(raw_img, cv2.COLOR_BayerBG2BGR)

Troubleshooting

Camera not detected:

• Check the Ethernet cable and camera power
• Run sudo ./scripts/setup_network.sh <interface> on the host
• Verify the host IP is on the same subnet: ip addr show
• Try ping <camera-ip>

Image is grey or out of focus:

• Triton cameras ship without a lens — a C-mount lens must be installed separately
• Adjust focus: python3 /arena_camera_ros2/scripts/focus_helper.py

No graphical window:

• Run xhost +local:docker on the host before starting the container

Compile error: True not declared:

• Fixed in this repository (upstream driver had Python True in C++ code)

---

Node Parameters

All parameters are startup-only — the node must be restarted to apply any change.

Parameter	Type	Description	Default

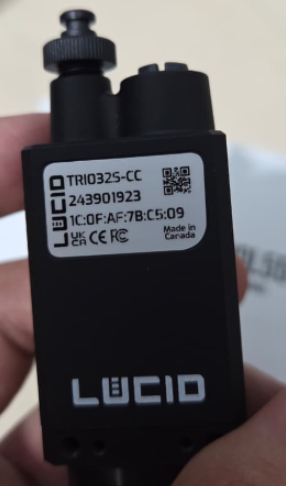

serial	int	Camera serial number	first available
topic	string	ROS2 topic name	/arena_camera_node/images
pixelformat	string	bayer_rggb8, rgb8, bgr8, mono8, …	rgb8
width	int	Image width in pixels	camera maximum
height	int	Image height in pixels	camera maximum
gain	float	Sensor gain in dB	0.0
exposure_time	float	Exposure in microseconds	camera default
frame_rate	float	Target acquisition frame rate (FPS)	camera default
trigger_mode	bool	true = triggered, false = continuous	false
qos_reliability	string	reliable or best_effort	reliable

frame_rate and exposure_time interaction

The actual frame rate is limited by whichever is lower: the frame_rate setting or 1 / exposure_time.

Example — 33 FPS at full resolution:

ros2 run arena_camera_node start --ros-args \
    -p serial:=<YOUR_SERIAL> \
    -p topic:=/camera/image_raw \
    -p pixelformat:=bayer_rggb8 \
    -p frame_rate:=33.0 \
    -p exposure_time:=25000

25 ms exposure → allows up to 40 FPS, so the 33 FPS frame_rate cap takes effect.

Using the launch script

# Inside the container
./scripts/start_camera.sh <serial> <topic> <pixelformat> <width> <height> <gain> <exposure> <fps>

# Example
./scripts/start_camera.sh 12345678 /camera/image_raw bayer_rggb8 "" "" 0 25000 33.0

Empty "" arguments use the camera's maximum resolution.

Multiple cameras

cp workspace/camera-lucid/config/cameras_example.yaml workspace/camera-lucid/config/cameras.yaml
# edit cameras.yaml with serial numbers and topic names

ros2 launch /arena_camera_ros2/launch/multi_camera.launch.py \
    config_file:=/arena_camera_ros2/config/cameras.yaml

Production deployments

For many cameras, use a gigabit switch with Jumbo Frame support and configure static IPs on each camera.

---

Multi-machine Streaming

Stream camera images from the camera machine to a remote receiver over LAN or VPN.

Why FastDDS profiles are needed

When a machine has multiple network interfaces (e.g., GigE camera port + WiFi), FastDDS advertises all interface IPs as data locators. The remote subscriber may then try to send ACKs to the GigE camera IP (169.254.x.x), which is not reachable from the remote side.

FastDDS unicast profiles restrict which IP is advertised. The publisher profile also includes the loopback address (127.0.0.1) so that co-located processes on the same machine communicate at full speed.

Bandwidth comparison

Method	Resolution	Rate	Bandwidth	Notes
RAW throttled	1024×768	15 FPS	~12 Mbps	Low resolution only
JPEG compressed q=80	2048×1536	33 FPS	~35–45 Mbps	Full res at full rate (WiFi OK)
RAW full	2048×1536	33 FPS	~825 Mbps	Requires 1 GbE link

JPEG compression is the recommended approach for streaming.

Setup

Camera machine (publisher)

./workspace/camera-lucid/config/setup_fastdds.sh publisher <streaming-interface>
./workspace/camera-lucid/scripts/start_camera.sh <serial> /camera/image_raw bayer_rggb8 "" "" 0 25000 33.0
bash ./workspace/camera-lucid/notebook_setup/compress_stream.sh /camera/image_raw

Receiver machine (Docker)

./workspace/camera-lucid/config/setup_fastdds.sh subscriber <receiving-interface>
sudo bash ./workspace/camera-lucid/notebook_setup/setup_firewall_receiver.sh 192.168.X.0/24

xhost +local:docker
docker compose up -d camera
docker compose exec camera bash

source /opt/ros/humble/setup.bash
python3 /arena_camera_ros2/notebook_setup/stream_viewer.py \
    --topic /camera/image_raw --compressed

Streaming over VPN (NetBird)

Multicast discovery does not work over any VPN tunnel. Use the FastDDS Discovery Server (recommended) or add initialPeersList manually:

<!-- Add inside <rtps> in fastdds_publisher.xml -->
<initialPeersList>
  <locator>
    <udpv4>
      <address>10.X.X.X</address>  <!-- remote peer VPN IP -->
      <port>11811</port>
    </udpv4>
  </locator>
</initialPeersList>

Streaming troubleshooting

Topic visible but 0 frames received:

• Most common cause: FastDDS advertising the wrong interface IP
• Run setup_fastdds.sh on both machines with the correct interface
• Confirm with tcpdump -i any udp port 7400 that packets are on the right interface

---

Recording

Direct MP4 (recommended)

Records video directly from the camera topic without intermediate files:

python3 /arena_camera_ros2/scripts/record_video.py --output camera.mp4
# Press Ctrl+C to stop and finalize the file

ROS2 Bag (lossless, for post-processing)

cd /arena_camera_ros2/bags
ros2 bag record /camera/image_raw -s mcap

The bag is stored in workspace/camera-lucid/bags/ on the host (volume-mounted).

Convert bag to MP4

python3 /arena_camera_ros2/scripts/convert_bag.py ./my_bag --output video.mp4

Record only compressed stream

ros2 bag record /camera/image_raw/compressed -s mcap -o compressed_bag
